Part Description:

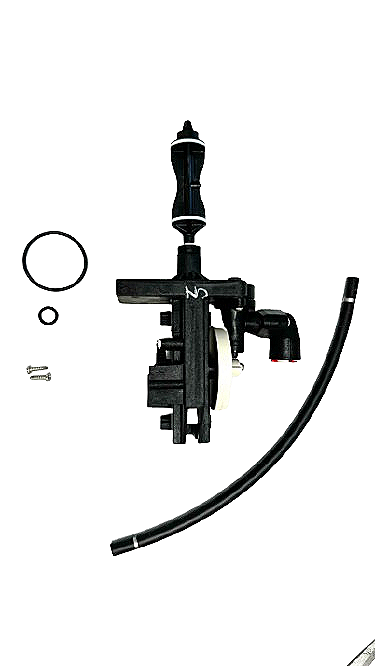

The Drive End Cap Assembly is a critical component of the AO Smith Pro water softener's valve drive system. It encloses and supports the internal drive gears and motor, controlling the movement of the valve during regeneration and rinse cycles. This assembly ensures proper alignment, reliable operation, and seals the drive compartment from external elements. Comes with an 11.5 inch brine line.
Function & Importance:
Replaces all the moving parts within the valve system
Ensures smooth operation of regeneration and rinse cycles
Helps maintain internal pressure and prevent leaks
Restores performance when systems are noisy, jammed, or failing to regenerate
Common Symptoms of Failure:
Loud noises during cycling
Stuck or incomplete regeneration
Leaking around the valve area
Motor not engaging or skipping steps
E1 error code
Compatible Models:
AOW-S400, and AOW-S500
Installation Tips:
Disconnect power and water supply before servicing
Turn bypass knob to service position
Hit regen button on controller and once tank has depressurized unplug controller
Remove the old drive end cap carefully and inspect internal gears
Insert the new drive end cap
When reinstalling the drive end cap, tighten the screws gradually and evenly. Insert all screws loosely at first, then tighten them a little at a time in a crisscross pattern. Rotating between screws ensures even pressure on the O-ring, creating a proper seal. Avoid fully tightening one screw before the others — doing so may cause the O-ring to misalign or compress unevenly, leading to potential leaks.
Why It Matters:
Over time, the internal moving parts of your softener can wear down, causing performance issues or even system failure. The Drive End Cap Assembly offers a complete replacement solution — restoring all moving components in one upgrade. It's a smart, cost-effective way to extend the life of your AO Smith Pro unit and keep your water soft and clean.
